How To Calculate Knee Point Voltage For 5P20

How To Calculate Knee Point Voltage For 5P20. Thanks for the valued information. 3) when i am calculating knee point voltage i am not getting.

Knee Point Voltage Diode from andropoide.blogspot.com

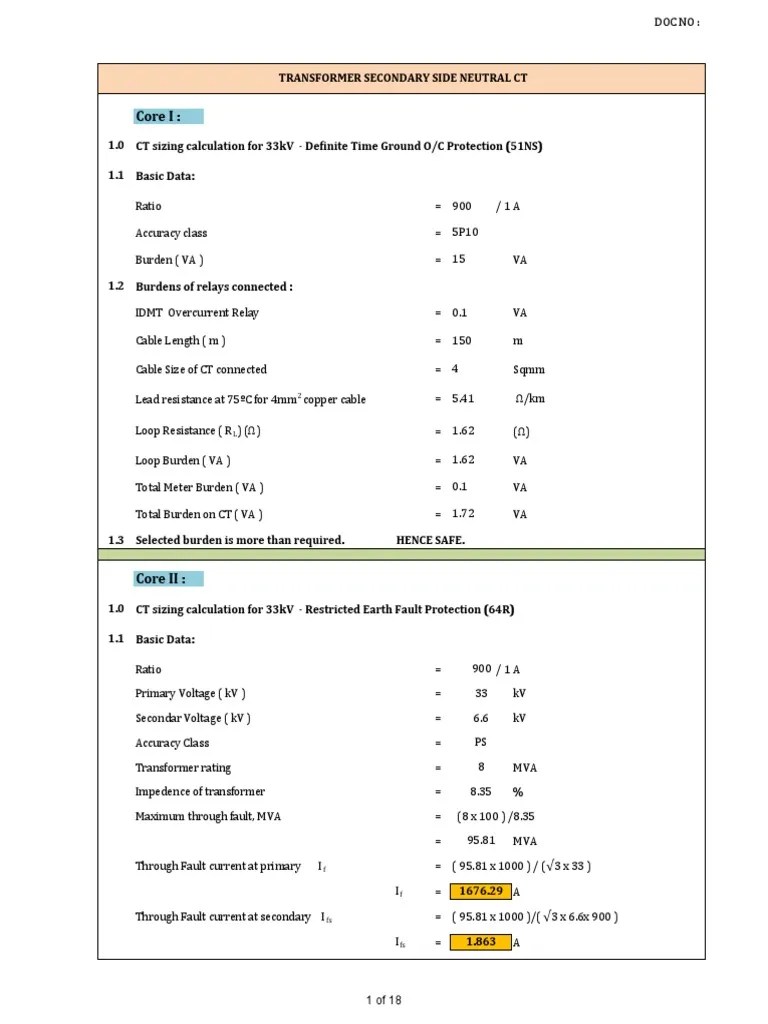

You need to provide maximum system voltage, short circuit level/value of the system. Vkp = k * if/ctr * (rct + rl + rr) in which, k = constant, conventionally taken as 2.0 vkp = the minimum knee point voltage if = maximum fault current at the location, in amperes ctr = ct ratio rct = ct secon. The formula for knee point voltage is:

Source: www.scribd.com

Knee point voltage of current transformer is of importance in protection class ct i.e. Protection class ct is normally specified as ps (protection special).

Source: www.electricalvolt.com

You need to provide maximum system voltage, short circuit level/value of the system. Ct knee point voltage can be calculated using the formula;

Source: www.slideshare.net

So the magnetizing characteristics of both lv & hv sides cts, should be same that means they have same knee point voltage v k as well as same excitation current i e at v k/2. 1) in ct why we select 5p20 for class of accuracy and how.

Source: andropoide.blogspot.com

Vk is determined by the point on the curve vs (im) from which a 10% increase in voltage vs leads to a 50% increase in the magnetising current. 5p20 600/1 30 va class 1 5p10 4.2 to 4.4 145 kv, 2000a + 17) (i) prot a 1/600/1200 1/500/1000 50 (rct 60.

Source: www.slideshare.net

October 15, 2021 at 7:48 pm. Vk is determined by the point on the curve vs (im) from which a 10% increase in voltage vs leads to a 50% increase in the magnetising current.

Source: www.scribd.com

X = rct + rated va of ct/ (rated ct secondary current)^2 vk = 20 * 1 * ( 5+20/(1*1)) = 500 volts usually for most of the numerical relay, required ct sizing calculations are based on. 3) when i am calculating knee point voltage i am not getting.

Source: www.electrical4u.net

X = rct + rated va of ct/ (rated ct secondary current)^2 vk = 20 * 1 * ( 5+20/(1*1)) = 500 volts usually for most of the numerical relay, required ct sizing calculations are based on. Protection class ct is normally specified as ps (protection special).

Source: dokumen.tips

Instrument safety factor of current transformer; C voltage linked to the accuracy limit of the class 5p cts:

Source: www.scribd.com

Vk is determined by the point on the curve vs (im) from which a 10% increase in voltage vs leads to a 50% increase in the magnetising current. Instrument safety factor of current transformer;

Source: www.semanticscholar.org

1) in ct why we select 5p20 for class of accuracy and how. To verify the knee point voltage, increase ct secondary applied voltage gradually until reaching knee point.

Source: www.youtube.com

The va burden comes 10 and alf is 20. The formula for knee point voltage is:

Source: www.slideshare.net

To verify the knee point voltage, increase ct secondary applied voltage gradually until reaching knee point. Vk is determined by the point on the curve vs (im) from which a 10% increase in voltage vs leads to a 50% increase in the magnetising current.

Source: www.youtube.com

Instrument safety factor of current transformer; You need to provide maximum system voltage, short circuit level/value of the system.

Source: www.electrical4u.net

I have learnt greatly from this vital information Vk is determined by the point on the curve vs (im) from which a 10% increase in voltage vs leads to a 50% increase in the magnetising current.

Source: testguy.net

The obtained readings are as. X = rct + rated va of ct/ (rated ct secondary current)^2 vk = 20 * 1 * ( 5+20/(1*1)) = 500 volts usually for most of the numerical relay, required ct sizing calculations are based on.

Source: andropoide.blogspot.com

What is meaning of 5p20 in current transformer? It can be again said that, if both knee point voltage of current transformer and magnetizing characteristic of cts of both sides of power transformer differ, there must be a mismatch in.

Source: www.electricalvolt.com

Ct knee point voltage can be calculated using the formula; To get the knee point voltage = 10va x 20

Source: www.slideshare.net

2) alf is selected from class of accuracy but how to calculate. The formula for knee point voltage is:

Source: www.scribd.com

You can use the namplate data to get an approx. What is meaning of 5p20 in current transformer?

Source: andropoide.blogspot.com

Knee point voltage is the voltage generated across ct terminals above or atthis valuect goes in saturation mode. Abstract—current transformer (ct) saturation, while a fairly common occurrence in protection systems, is.

The Va Burden Comes 10 And Alf Is 20.

Accuracy limit factor of current transformer; Where ct is used for protection purpose. How to calculate knee point voltage of current transformer?

What Is Meaning Of 5P20 In Current Transformer?

5p20 600/1 30 va class 1 5p10 4.2 to 4.4 145 kv, 2000a + 17) (i) prot a 1/600/1200 1/500/1000 50 (rct 60. Knee point voltage of current transformer is of importance in protection class ct i.e. If the burden of ct increases, the net magnetic flux flowing through the ct core will get increase because the secondary current gets decreased with increase of ct burden, and the core of the ct will get heated up due to core saturation which may cause permanent failure of.

October 15, 2021 At 7:48 Pm.

Vkp = k * if/ctr * (rct + rl + rr) where, k = constant, conventionally taken as 2.0 vkp = the minimum knee point voltage if = maximum fault current at the location, in amperes ctr = ct ratio rct = ct secondary winding resistance, in ohms Thompson, and brad heilman, schweitzer engineering laboratories, inc. A practical guide to ct saturation ariana hargrave, michael j.

1 Comment / Switchgear / By Sirajul / Ct , Instrument Transformer Application And Choosing Of Current Transformer For Metering And Protection Is An Important And Critical Task.

Vkp = k * if/ctr * (rct + rl + rr) in which, k = constant, conventionally taken as 2.0 vkp = the minimum knee point voltage if = maximum fault current at the location, in amperes ctr = ct ratio rct = ct secon. Thanks for the valued information. If playback doesnt begin shortly, try restarting your.

Please Search In Google For More Techincal Detail Information.

X = rct + rated va of ct/ (rated ct secondary current)^2 vk = 20 * 1 * ( 5+20/(1*1)) = 500 volts usually for most of the numerical relay, required ct sizing calculations are based on. Knee point voltage is the voltage generated across ct terminals above or atthis valuect goes in saturation mode. To calculate the ct vk.
