Voltage Sag Due To Induction Motor Starting

Voltage Sag Due To Induction Motor Starting. 2 power quality events in induction motor starting. Magnitude and duration of voltage sag due to starting of the induction motor before the installation of the statcom device.

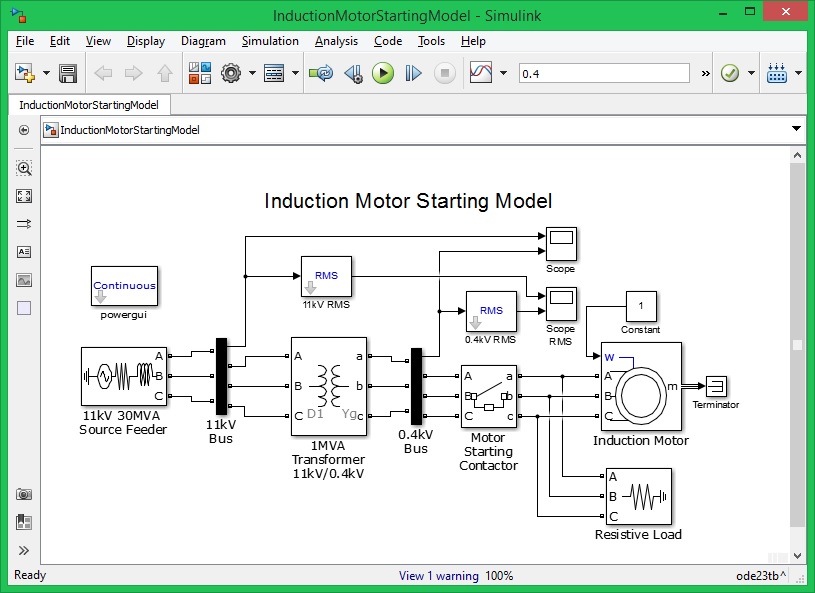

Voltage Sag Caused by Induction Motor Starting File from www.mathworks.com

A typical cause of voltage sags is the direct line start of large induction motors that normally draw 5 to 7 times their rated current during startup. Starting of induction motor and double 3 phase fault in sequentially applied in time range of one second cause the voltage sag that impact to voltage profile of sensitive load. Motors have the undesirable effect of drawing several times their fullload current while starting.

Source: wiringdiagram.veerlebaetens.com

Starting of induction motor and double 3 phase fault in sequentially applied in time range of one second cause the voltage sag that impact to voltage profile of sensitive load. R1, x1, r2, x2, and xm.

Source: mountainlakeworkshop.com

Analysis and calculation of various faulted condition. Magnitude and duration of voltage sag due to starting of the induction motor before the installation of the statcom device.

Source: mountainlakeworkshop.com

The voltage sag magnitude is 0.25% lasted for 0.3 Voltage sags due to motor starting:

Source: newsstellar.com

Where voltage issues due to motor starting, switching (line isolators, capacitor banks, and etc.), and sudden increase or decrease of loads are known as voltage sags or swells. Ø wk 2 (inertia constant) values for the motor and the motor load.

Source: wiringdiagram.veerlebaetens.com

The voltage sag magnitude is 0.25% lasted for 0.3 A typical cause of voltage sags is the direct line start of large induction motors that normally draw 5 to 7 times their rated current during startup.

Source: razzaq.bestvacuumcleanerr.com

In such cases, transformers and generators have insufficient current capacity starting large inductive motors. 2 power quality events in induction motor starting.

Source: www.ekocraft-appleleaf.com

To mitigate the voltage sag, on the sensitive load side is installed dvr. Magnitude and duration of voltage sag due to starting of the induction motor before the installation of the statcom device.

Source: voltage-disturbance.com

The use of a motor starter reduces the voltage sag depth but increases its. 2 power quality events in induction motor starting.

Source: www.ekocraft-appleleaf.com

Starting of induction motor and double 3 phase fault in sequentially applied in time range of one second cause the voltage sag that impact to voltage profile of sensitive load. This large current will, by flowing through system impedances, cause a voltage sag which may dim lights, cause contactors to drop out, and disrupt sensitive equipment.

Source: get3.fotodecoracion.org

Modern power electronic devices or equipments are sensitive to voltage variations and susceptible to damage. In some ieee guidelines, resulting voltages caused by motor starting or switching.

Source: www.ekocraft-appleleaf.com

This increased sensitivity of the equipments to voltage sag has highlighted the importance of quality of power. Starting a motor directly from the supply line can cause the supply voltage to dip, or sag, due to the higher than normal voltage drop across supply line and transformer impedances.

Source: musicaccoustic.com

In severe cases, this voltage sag can cause supply instability or the failure of sensitive power electronics connected to the system. Voltage sag produced by induction motor starting current is one of the main causes of sensitive equipment dropout.

Source: webmotor.org

Respect to the voltage sags due to induction motor starting, the magnitudes of the three phases are the same. Ü the subsequent connection to full voltage originates new sag separated from the first one by a few seconds.

Source: www.mathworks.com

Respect to the voltage sags due to induction motor starting, the magnitudes of the three phases are the same. We are dealing with power quality and harmonics, hope you will enjoy it

Source: www.ekocraft-appleleaf.com

You can download my book chapter from the link below for details reading. This large current will, by flowing through system impedances, cause a voltage sag which may dim lights, cause contactors to drop out, and disrupt sensitive equipment.

Source: www.researchgate.net

Static transfer switches and fast transfer switches. Ø torque versus speed characteristic for.

Source: musicaccoustic.com

Ü the use of motor starter reduces the voltage sag depth but increases its duration. Motors have the undesirable effect of drawing several times their fullload current while starting.

Source: www.scribd.com

Remember that starting torque of induction motor varies as square of the applied voltage. From this figure it is shown that the motor has switched on after 0.3sec of running the system, this time is required for charging the capacitor via the uncontrolled rectifier.

Source: www.researchgate.net

Voltage sag produced by induction motor starting current is one of the main causes of sensitive equipment dropout. This increased sensitivity of the equipments to voltage sag has highlighted the importance of quality of power.

Source: www.indiamart.com

Analysis and calculation of various faulted condition. In some ieee guidelines, resulting voltages caused by motor starting or switching.

A Typical Cause Of Voltage Sags Is The Direct Line Start Of Large Induction Motors That Normally Draw 5 To 7 Times Their Rated Current During Startup.

Magnitude and duration of voltage sag due to starting of the induction motor before the installation of the statcom device. Where voltage issues due to motor starting, switching (line isolators, capacitor banks, and etc.), and sudden increase or decrease of loads are known as voltage sags or swells. Ø wk 2 (inertia constant) values for the motor and the motor load.

Starting A Motor Directly From The Supply Line Can Cause The Supply Voltage To Dip, Or Sag, Due To The Higher Than Normal Voltage Drop Across Supply Line And Transformer Impedances.

Respect to the voltage sags due to induction motor starting, the magnitudes of the three phases are the same. We are dealing with power quality and harmonics, hope you will enjoy it In such cases, transformers and generators have insufficient current capacity starting large inductive motors.

You Can Download My Book Chapter From The Link Below For Details Reading.

Line to line and line to ground issues are a percentage of the reasons for voltage sags and voltage unbalance in the power supply system for businesses and business structures. From this figure it is shown that the motor has switched on after 0.3sec of running the system, this time is required for charging the capacitor via the uncontrolled rectifier. Starting of induction motor and double 3 phase fault in sequentially applied in time range of one second cause the voltage sag that impact to voltage profile of sensitive load.

Voltage Sag Due To Induction Motor Starting.

The direct on line (dol) starting of a high power induction motor causes an intense voltage sag [12] in the power supply system. 2 power quality events in induction motor starting. Analysis and calculation of various faulted condition.

This Large Current Will, By Flowing Through System Impedances, Cause A Voltage Sag Which May Dim Lights, Cause Contactors To Drop Out, And Disrupt Sensitive Equipment.

Voltage sags due to motor starting: Also, loose or defective wiring can cause voltage sags due to increased system impedance. Remember that starting torque of induction motor varies as square of the applied voltage.
