What Causes Battery Internal Resistance. The internal resistance of a battery is dependent on its size, capacity, chemical properties, age, temperature, and the discharge current. Internal resistance is applied when you study the internal resistance of batteries.

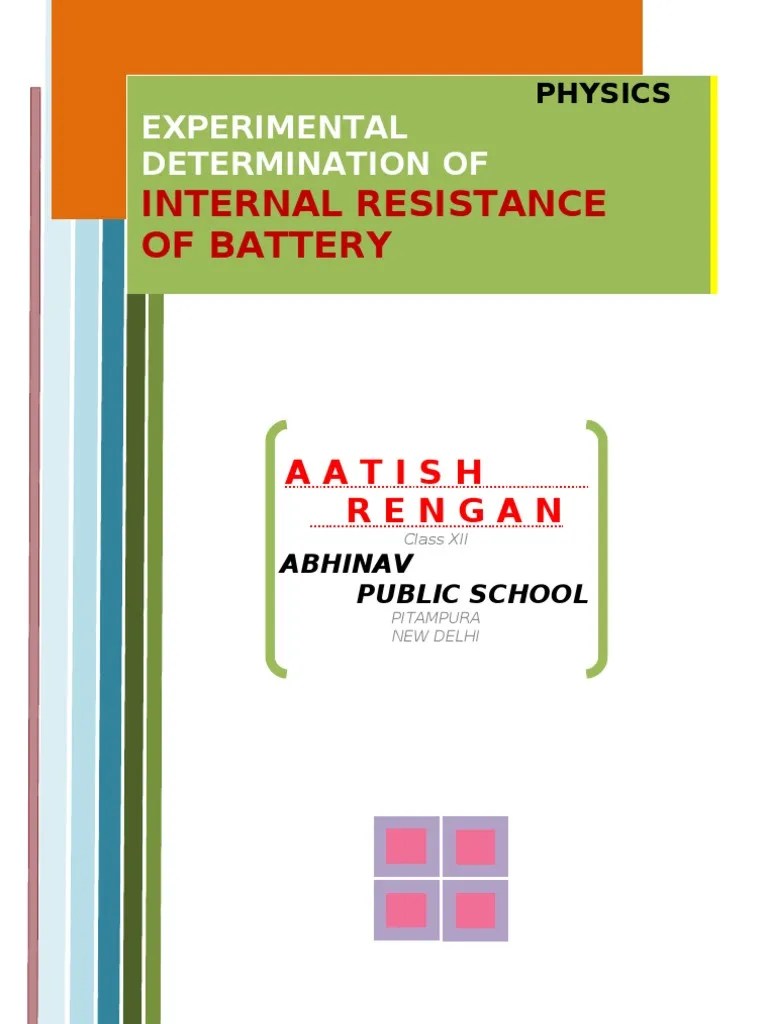

Internal Resistance of Battery from www.scribd.com

So during battery operation, all the voltage will be dropped across the element that the battery is. This article will discuss the factors that affect the battery internal resistance from battery structure design, raw material performance, manufacturing process and use conditions. Internal resistance gets lower when the battery temperature increases.

Source: www.youtube.com

Display the circuit values by making sure that the "values" checkbox is marked. Thats why the cold winter weather reduces the power and capacity delivered by the bettery.

Source: www.hintainin.co

This article will discuss the factors that affect the battery internal resistance from battery structure design, raw material performance, manufacturing process and use conditions. It is caused due to electrolytic material in batteries or other voltage sources.

Source: newsstellar.com

Loss of electrolyte is also a frequent cause of increased electrolyte resistance. Temperature also affects the resistance;

Source: www.scribd.com

The internal resistance of a chemical battery is typically between a fraction of an ohm and a few ohms, and is mainly due to the resistance of the electrolytic materials. So during battery operation, all the voltage will be dropped across the element that the battery is.

Source: www.youtube.com

The change of battery internal resistance is affected by various usage conditions like temperature and depth of discharge. Also know, what causes battery internal resistance?

Source: ny.cicig.co

Loss of electrolyte is also a frequent cause of increased electrolyte resistance. Once the battery starts to get old, the internal resistance will rise to 15 to 20 m ohm.

Source: www.hintainin.co

As the battery is discharged the electrolyte concentration is reduced, becoming pure water when the battery is fully discharged. Internal resistance gets lower when the battery temperature increases.

Source: shopee.com.mx

Ideally, a battery should have 0ω internal resistance. Internal resistance gets lower when the battery temperature increases.

Source: www.youtube.com

As you try to draw a large current from the battery, the battery struggles and that is analogous to having an increasing series resistance. Internal resistance occurs when there is current in a device or electrical circuit and a voltage drop in the source voltage or source battery.

Source: newsstellar.com

So what are the two things that add together to create the the batterys internal resistance? What causes internal resistance in a battery you can display battery might as a voltage source in arrangement with a resistance.

Source: retrotechlab.com

Sulfation and grid corrosion are the main contributors to the rise of the internal resistance with lead acid. So what are the two things that add together to create the the batterys internal resistance?

Source: newsstellar.com

(1) the positive electrode material has high resistance (poor conductivity, such as lithium iron phosphate) (2) influence of diaphragm material (diaphragm thickness, small porosity, small pore size) (3) the influence of lithium ion battery. So during battery operation, all the voltage will be dropped across the element that the battery is.

Source: www.hintainin.co

The crystal structure and chemical composition of the electrodes themselves can change increasing the internal resistance of the battery. Can you use a multimeter to measure the internal resistance of a battery?

Source: www.scienceabc.com

Choose an internal resistance and circle your selection in the table below. Because of this change in electrolyte concentration the battery resistance increases during discharge.

Source: www.hintainin.co

Temperature also affects the resistance; Internal resistance occurs when there is current in a device or electrical circuit and a voltage drop in the source voltage or source battery.

Source: www.researchgate.net

Internal resistance gets lower when the battery temperature increases. Figure 6 reveals the increase of the internal resistance of a gelled lead acid battery used for wheelchairs.

Source: www.youtube.com

What is the source of a battery's internal resistance? So during battery operation, all the voltage will be dropped across the element that the battery is.

Source: www.youtube.com

Batteries have internal resistance because the elements that make it up arent perfect conductors. Figure 6 reveals the increase of the internal resistance of a gelled lead acid battery used for wheelchairs.

Source: ny.cicig.co

So they will have some resistance (internal resistance) in them. Internal resistance is an important concept in electrical engineering, and it can be applied to many types of projects or experiments which involve electricity.

Source: www.chegg.com

Internal resistance is also vital when designing engines in cars, trucks, or other large vehicles. The polarized internal resistance, on the other hand, is the resistance caused by polarization during the electrochemical reaction and also includes the.

Heating The Battery Will Momentarily Lower The Internal Resistance To Provide Extra Runtime.

Once the battery starts to get old, the internal resistance will rise to 15 to 20 m ohm. Sulfation and grid corrosion are the main contributors to the rise of the internal resistance with lead acid. Heat lowers it and cold raises it.

So What Are The Two Things That Add Together To Create The The Batterys Internal Resistance?

When there is current present in the device or the electrical circuit and there's a voltage drop in source voltage or source battery is internal resistance. The influence of structural design. Suppose you have a typical battery pack of 1300 to 1500 mah capacity.

Electrolytic Material In Batteries Or Other Power Sources Causes It.

The value that you are setting is your battery's emf. Because of this change in electrolyte concentration the battery resistance increases during discharge. The lower amount of internal resistance depends on the individual circuit.

Ideally, A Battery Should Have 0Ω Internal Resistance.

As a battery ages reaction and corrosion products can clog the pores, thus decreasing the ion flow and increasing battery resistance. Measurement of the internal resistance of a battery is a guide to its condition, but may not apply at other than the test conditions. As the battery is discharged the electrolyte concentration is reduced, becoming pure water when the battery is fully discharged.

Ohmic Internal Resistance Is Composed Of Electrode Material, Electrolytes, Diaphragm Resistance And Contact Resistance Between The Plates, Which Is Related To The Size, Structure And Assembly Of The Battery.

Internal resistance is applied when you study the internal resistance of batteries. Practically speaking, the internal strength of a cell is reliant on its size, substance properties, age, temperature, and the release current. What is the source of a battery's internal resistance?
